TI DM8107 SoC based design.

TI TVP5158 multi-channel video decoder to capture video from analog cameras

Overall record features are given below

• - records up to 16 channel CIF
• - various record trigger modes including manual mode, motion detect mode, schedule based mode, external event input mode
• - audio 8KHz / 16KHz Audio mono input and compression per channel 1 channel Audio stereo input and compression
• - One of multiple input/playback audio channels can be output to the single speaker at a time

Storage of compressed input channels (audio+video)

• - Supports SATA2 and eSATA(optional)

Overall playback performance is given below

• - Multi CH playback of files stored in HDD
• - CIF / D1 resolution
• - NTSC / PAL
• - up to 30 fps
• - encoded data can be viewed on the display monitor
• - recorded data can be viewed on the display monitor
• - when playback runs in parallel with recording/live view, recording/live view FPS is reduced according to available system performance
• - various playback modes like playback / search based on camera input, date, event type
• - trick play modes for FF / REW

Live view

• - All input / playback video channels can be viewed at the same time with different screen layouts supported
• - Display type:HDMI,composite(NTSC/PAL),computer monitor display(upto XGA 1280x1024)
• - De-interlacing / De-noising of data before display

Other features

• - HDD content backup via USB 2.0 storage drive
• - Video loss detection
• - Camera title, date-time imprint on the input video channels
• - Motion detection
• - PTZ control for analog camera inputs

Software Development Kit (SDK) provided for easy customization

• - Modular, scalable, robust software architecture with ability to change customized, different parts of the system easily
• - Open source Linux OS based software stack
• - Complete source available along with documentation

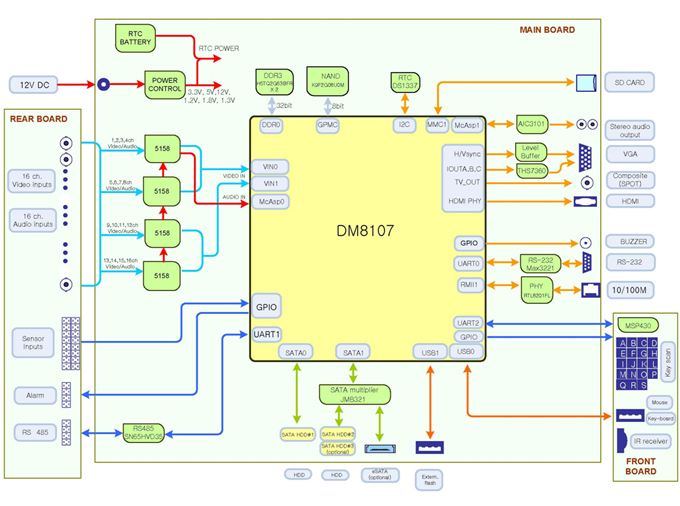

H/W system

• - main board/rear board/front board with case

• - schemetics(pdf)

S/W package

• - source level : boot, kernel, TI SDK, Application interface, UI(QT) code
      --> Customers/Developers can modify these source code
• - lib level : recording
      --> Recoring and streaming modules are a sample interface with 8107 codec engine.
            It is released by type of lib.

Recommendation for ODD

• We've tested several ODD for DVD backup

  Test results is as belows.

Test results is as belows.

ODD Maker	Model	Result
LG	GH24NS70	pass
	GH24NS90	Fail to pass
Lite-on	iHAS122	pass
SAMSUNG	SH-222BB	fail to pass

Stream	Scenario1	Scenario2	Scenario3	Scenario4
Encode Primary stream	4 x D1 30fps/ch	8 x D1 30fps/ch	16 x CIF 30fps/ch	8 x CIF 30fps/ch
	H.264	H.264	H.264	H.264
Encode Secondary stream	4 x CIF 30fps/ch	N/A	16 x QCIF 4fps/ch	8 x QCIF 30fps/ch
	H.264	N/A	H.264	H.264
Decode stream	4 x D1 30fps/ch	1 x D1 30fps/ch	16 x CIF 30fps/ch	8 x CIF 30fps/ch
	H.264	H.264	H.264	H.264
Encode Audio stream	4 x G.711 mono 16KHz	8 x G.711 mono 16KHz	16 x G.711 mono 16KHz	8 x G.711 mono 16KHz
Decode Audio stram	1 x G.711 mono 16KHz	1 x G.711 mono 16KHz	1 x G.711 mono 16KHz	1 x G.711 mono 16KHz

NOTE : Each Scenario would need a different DM8107 configuration/variants. More details coming soon. Contact Texas Instruments for further information.

Note :
Prices do not include taxes, shipping and handling Standard Delievery : 4~5 weeks
License : There are two License agreements in the box. See the details of the license agreements below.

1. Production license agreement
After signing the production license agreement with TI, the below complete Hardware and Software will be provided

• Linux Support Package and schematics
• Linux source code including driver
• Developing Documents

2-1.DM8107 DVR RD without HDD

• Power supply AC 50/60Hz 100-240V
• UART cable for RS232 terminal debug
• Ethernet cable
• User Guide
• CD with software and documentation
• Price US$1,095

2-2.DM8107 DVR RD with HDD (1TB)

• Power supply AC 50/60Hz 100-240V
• UART cable for RS232 terminal debug
• Ethernet cable
• User Guide
• CD with software and documentation
• Price US$1,395
